Retail Centre Roof Slab Waterproofing in Industria West, Johannesburg

Location: Industria West, Johannesburg
Service: Concrete roof slab waterproofing — ArmTec HyperFlex over existing torch-on (commercial retail)

A retail centre in Industria West, Johannesburg had a flat concrete roof slab where the original torch-on waterproofing had failed. With shops trading underneath, the priority was a durable, seamless overlay that could go straight over the old membrane without a full strip-out, so Eco Seal installed the ArmTec HyperFlex system over the prepared torch-on.

The problem

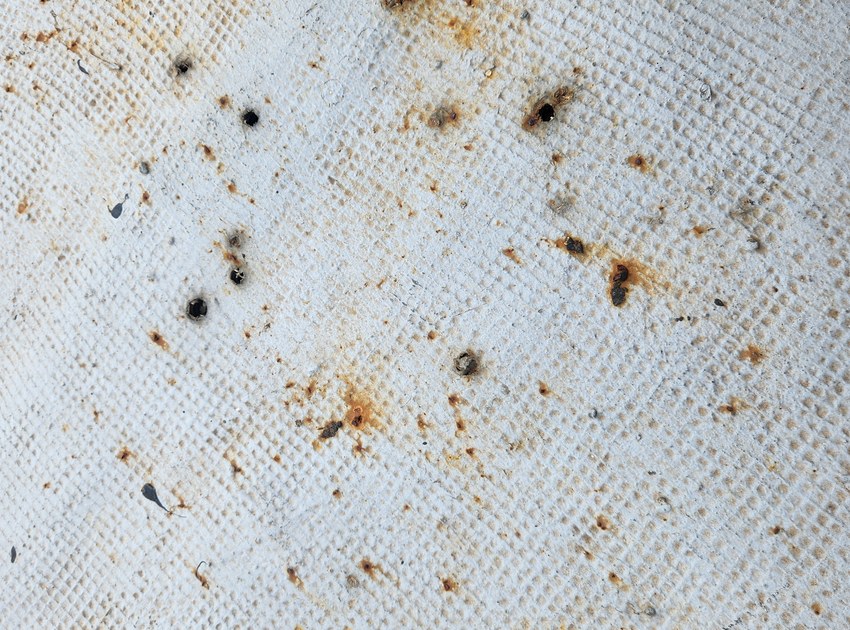

The existing torch-on membrane had blistered and cracked, with laps lifting and the upstands and outlets no longer sealed. Bitumen torch-on goes hard and brittle under Johannesburg’s UV, so once it opens up, water runs under the sheet and into the retail units below. Ripping torch-on off a live shopping centre roof is disruptive, so a bonded liquid overlay was the correct, low-disruption fix.

The Eco Seal solution

As an approved SealPro applicator, Eco Seal overlaid the failing torch-on with a fully reinforced ArmTec HyperFlex membrane:

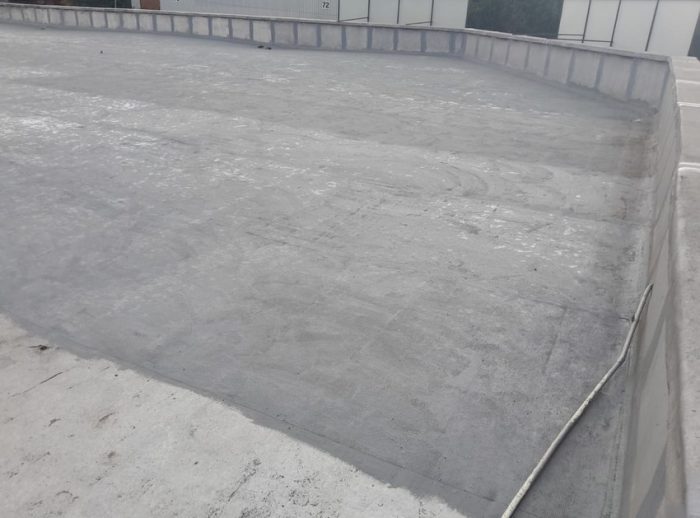

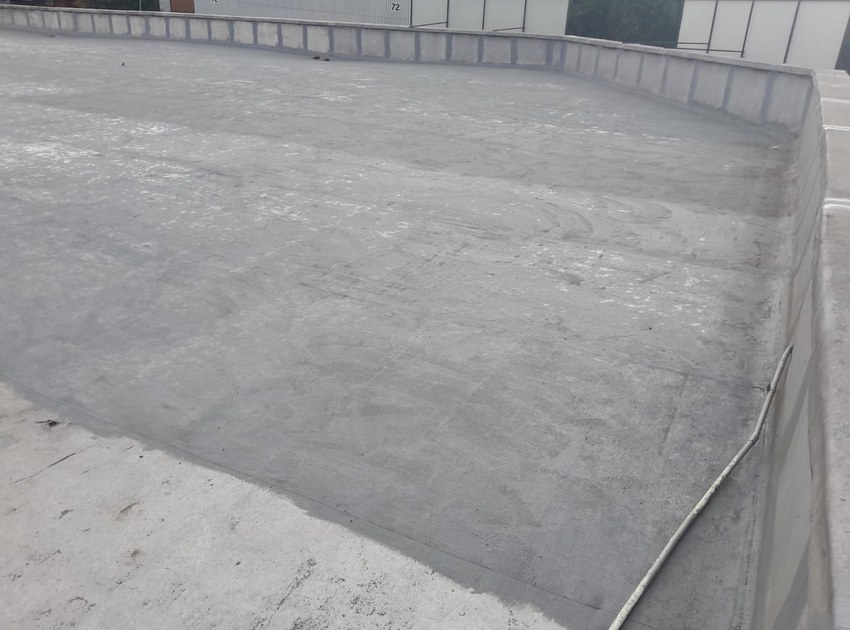

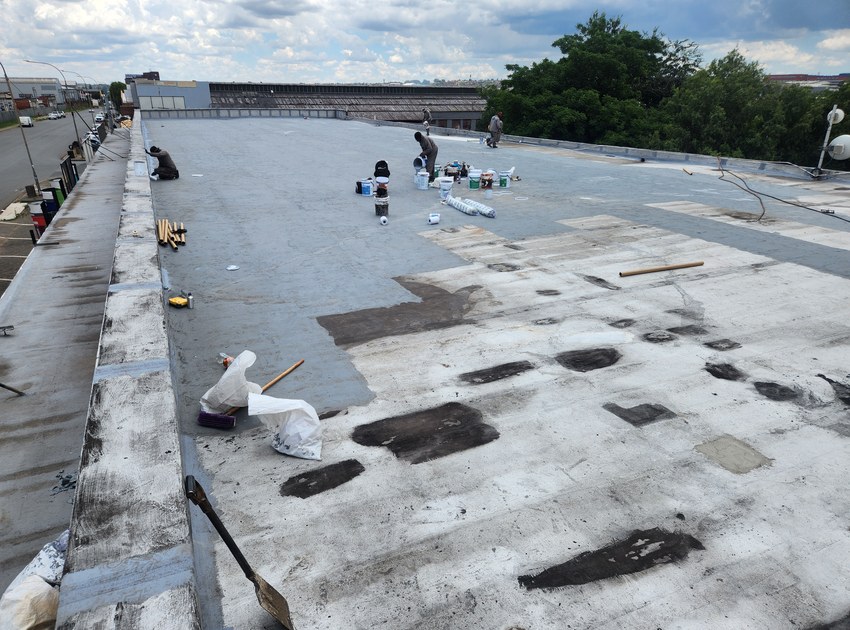

1. Clean and prepare — the torch-on was cleaned down, blisters cut and laid flat, and lifted laps, upstands and outlets made good.
2. Prime — the surface was primed with Penetrar to bond the new system to the aged bitumen membrane.

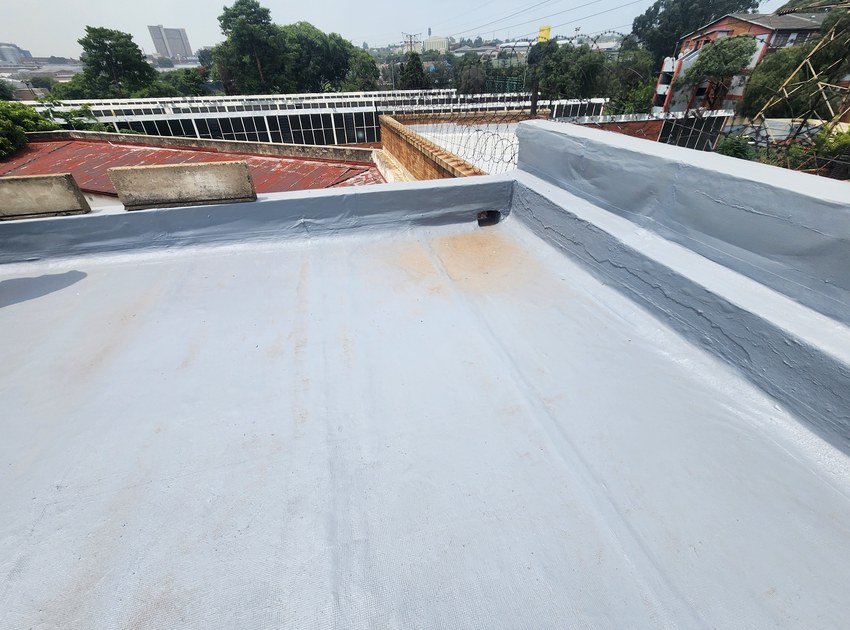

3. Detail the weak points — laps, movement joints, upstands and pipe penetrations were reinforced with Flex and StretchSeal.

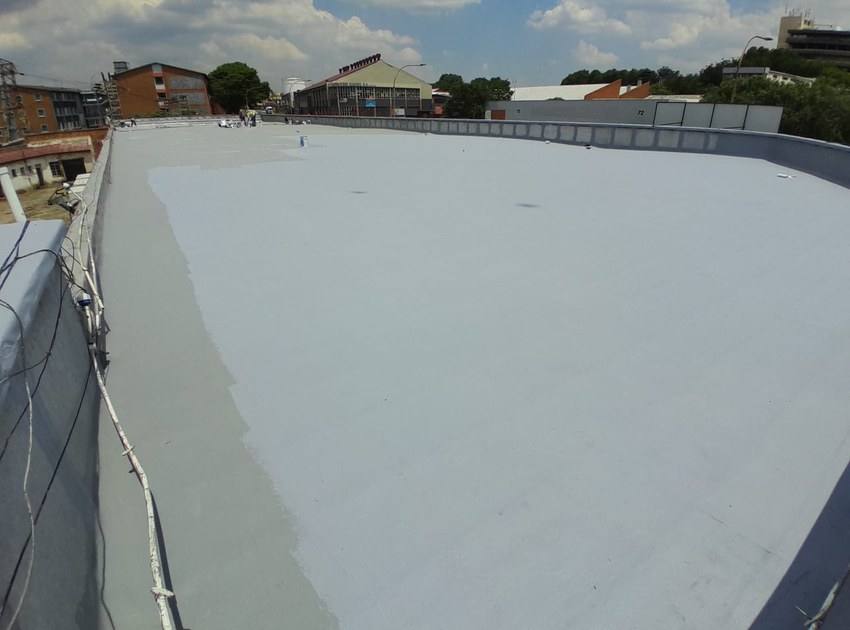

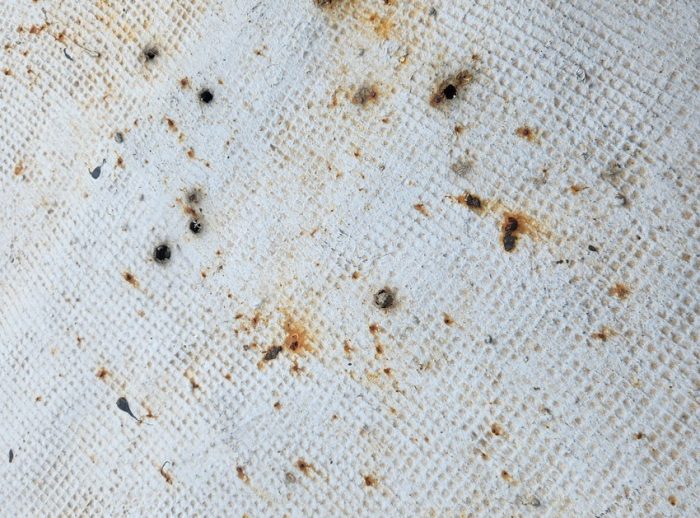

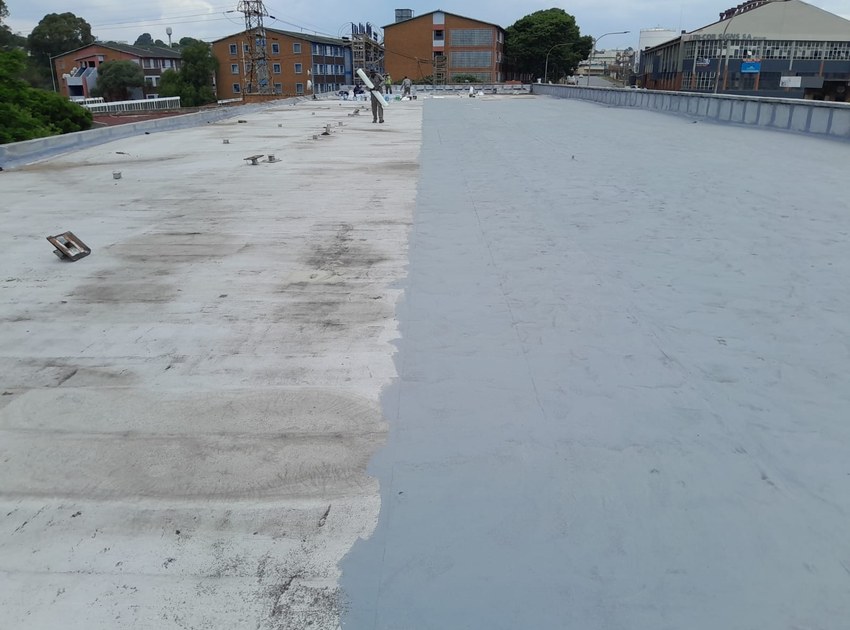

4. ArmTec HyperFlex membrane — HyperFlex was applied with ArmTec reinforcing mesh embedded across the full slab, forming one seamless, elastic sheet over the old torch-on.
5. Protective topcoat — finished with two coats of HydroSeal HF for a UV-stable, heat-reflective seal.

The result

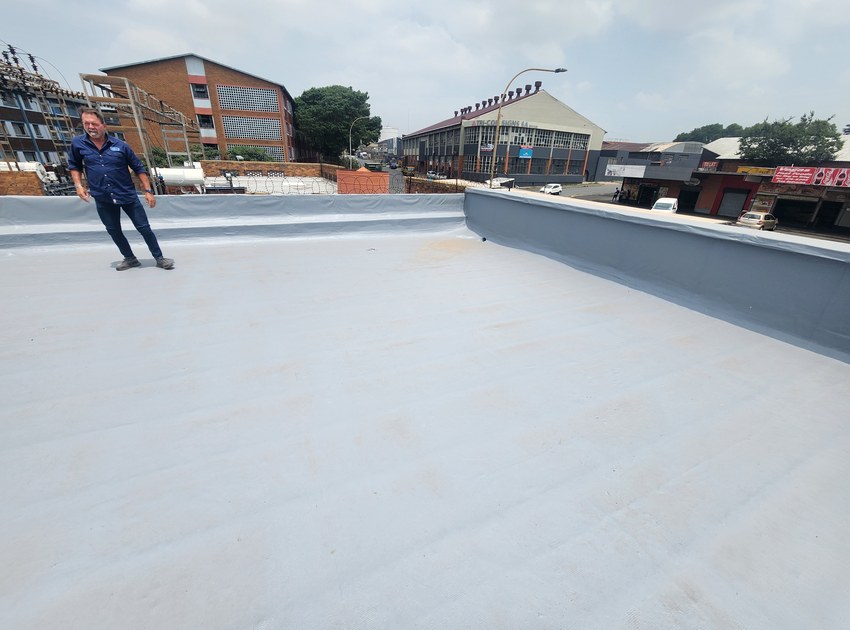

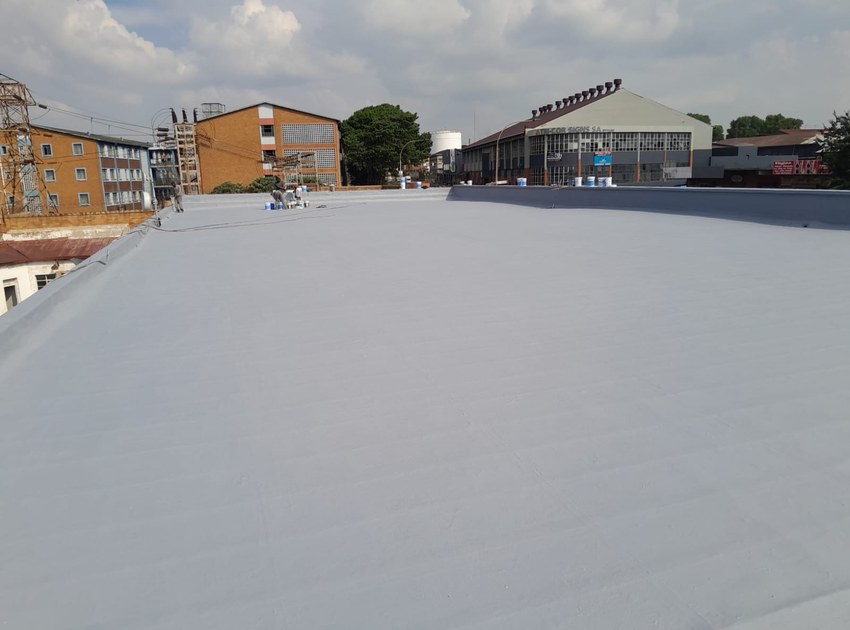

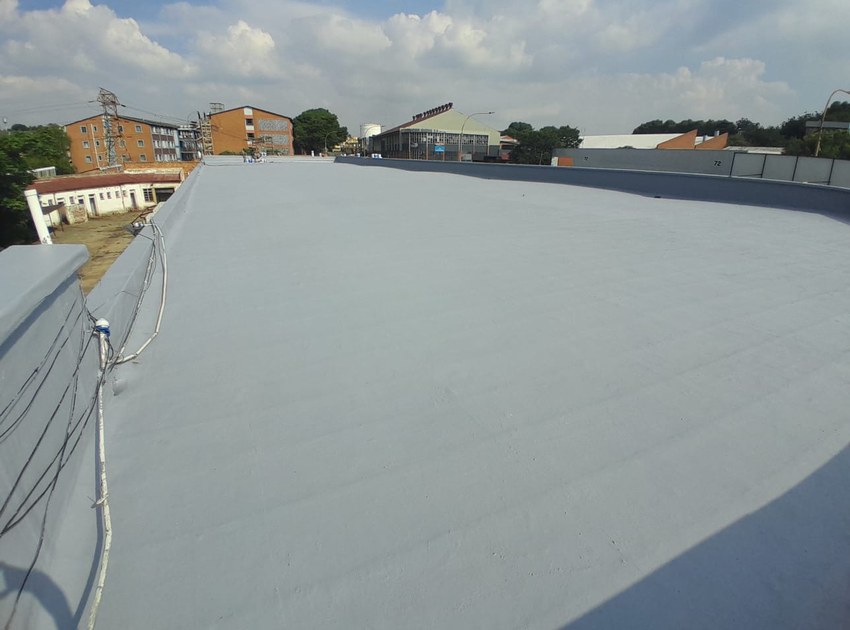

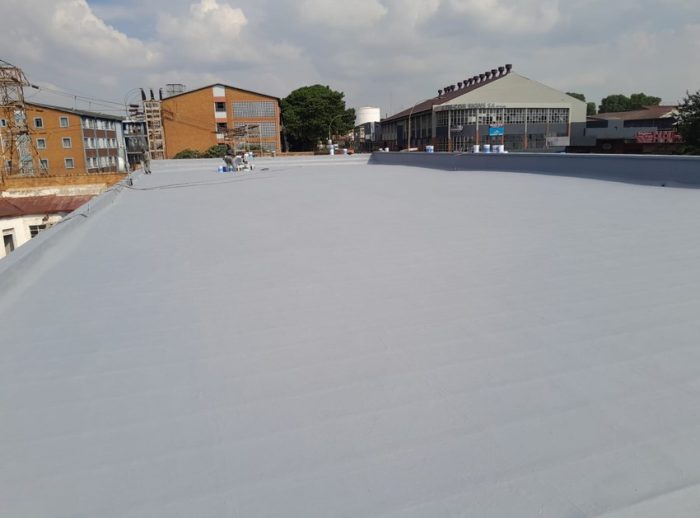

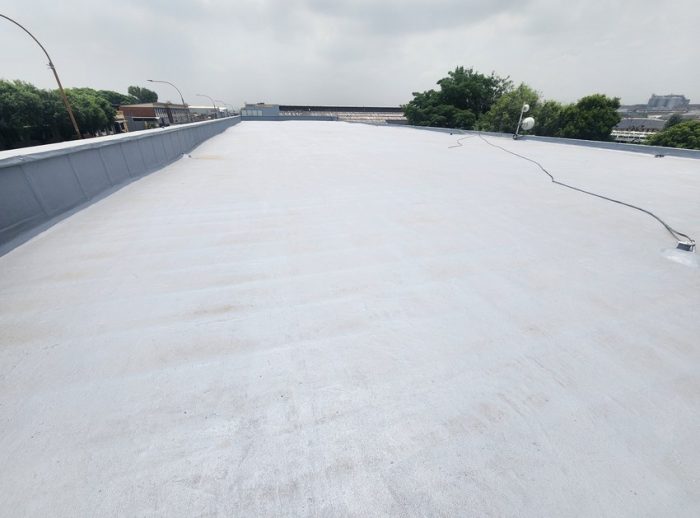

The retail centre slab now carries a single, seamless waterproof membrane bonded over the old torch-on, with every lap, upstand and outlet reinforced and sealed — the same concrete slab waterproofing and ArmTec HyperFlex system we install on commercial roofs across Gauteng. Minimal disruption to the shops below and a finish built for the Highveld. See more of our waterproofing work.
